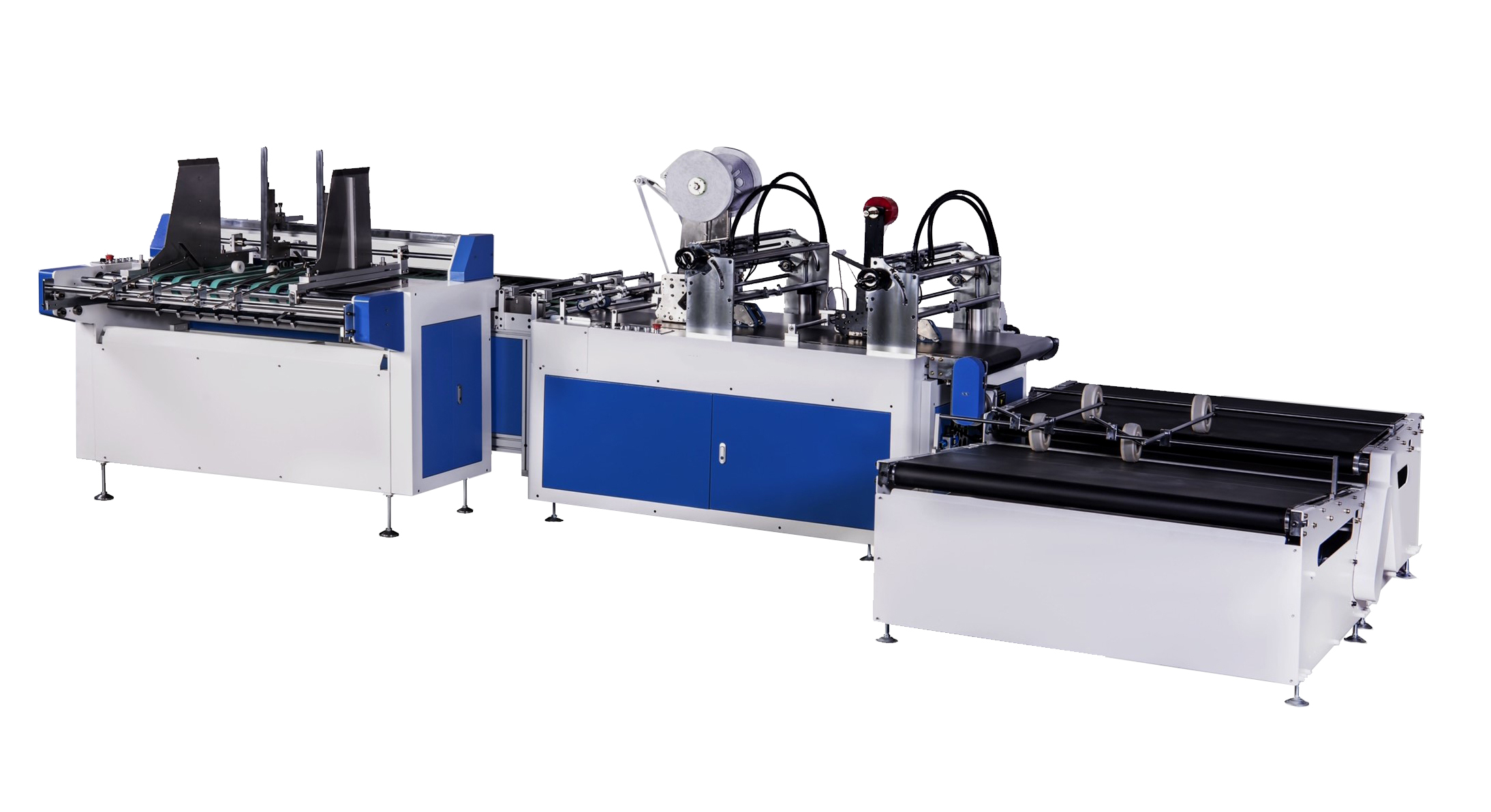

Shopping Carton Box Double Sided Tape Application Machine
TMA automatic shopping carton box double sided tape application machine widely used in corrugated carton shopping box. The machine has a PLC touch screen and PLC programs that enables you to program and save a multitude of tasks related to the handling of different products. The tape applicator head adopts magnet valve and air cylinder working. The tape applicator quantity can be installed 2 sets and tear taping applicator can be installed.
|
Model |
TMA-1300 |
|
Product max size |
1300*800mm |
|
Product mmin size |
200*100mm |
|
Product thickness |
Corrugated paper |
|
Width of Tape size |
5-35mm,10-60mm，12-80mm |
|
Pasting head |
1-4 pcs |
|
Speed |
40-90 m/min |
|
Accuratly |
+/-1mm |
|
Power/Voltage |
3.4w/AC220V |
|
Machine Dimension |
L4800*W2300*H1650 |
|
Weight |
1500KG |
|
Double Sided Tape Applicator |
|
|
Double sided tape size |
4-38mm or( 10-60mm） |
|
Tape roll diameter |
≤400mm |
|
Tape roll inner diameter |
76mm |
|
Speed |
80m/min |
|
Min spacing between two segments |
30mm |
|
Taping accuracy |
±1mm |
|
Weight |
7kg |
|
Dimension |
760*240*60mm |
|
Power/Voltage |
24V/20W |
|
Tearing Tape Applicator |
|
|
Tear tape size |
3mm-5mm |
|
Tape roll diameter |
200mm |
|
Tape roll inner diameter |
30mm |
|
Speed |
80m/min |
|
Min spacing between two segments |
30mm |
|
Taping accuracy |
±1mm |
|
Weight |
6kg |
|
Dimension |
600*250*260mm |
|
Power/Voltage |
24V/20W |
