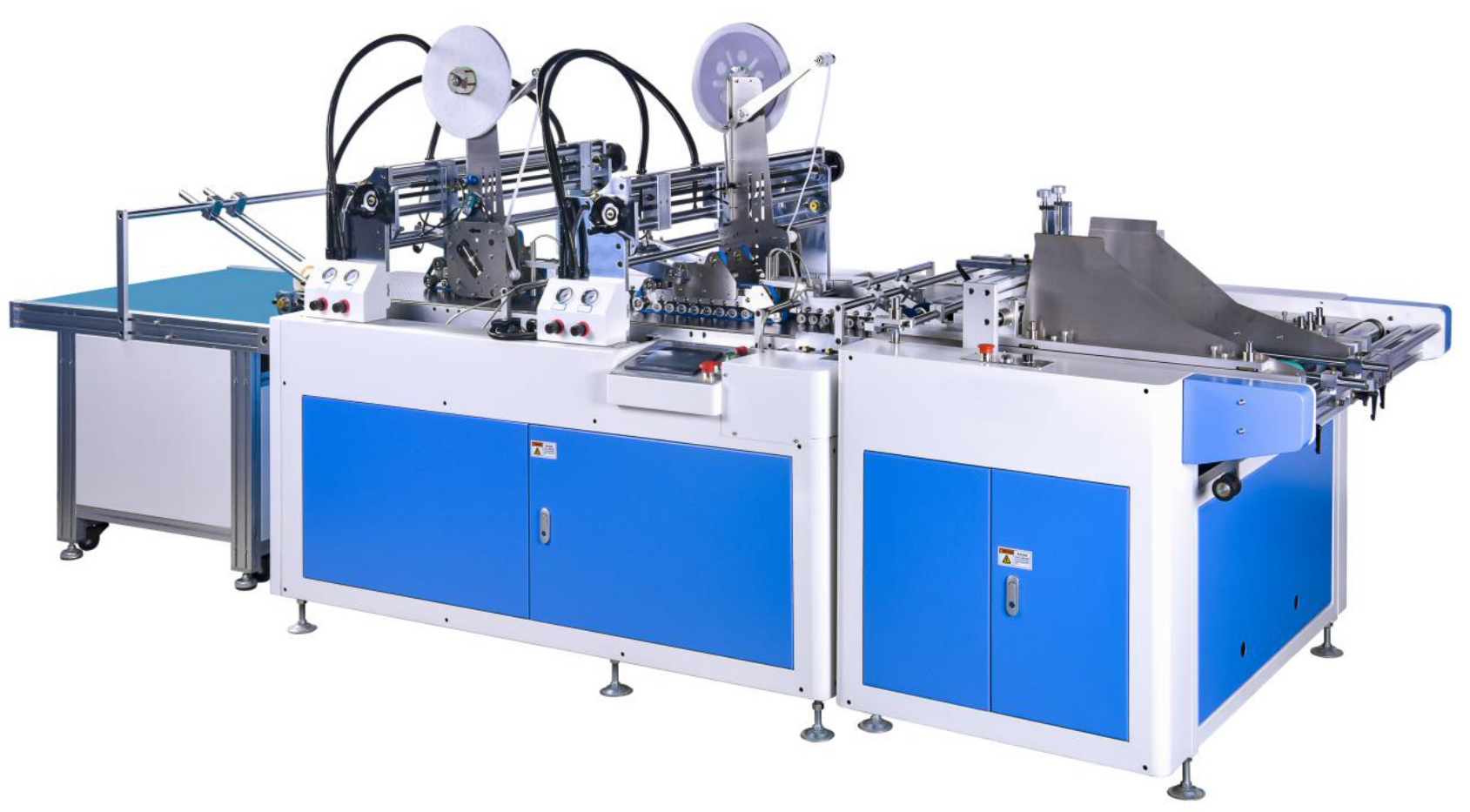

Automatic Double Sided Tape Application Machine

TMA automatic double sided tape application machine widely used in folders, boxes, displays, stands etc. The machine has a PLC touch screen and PLC programs that enables you to program and save a multitude of tasks related to the handling of different products. The tape applicator head adopts magnet valve and air cylinder working. The tape applicator quantity can be installed 2~4 sets.



Model

TMA-600

TMA-800

Max feeding size

L800*W600mm

L800*W850mm

Min feeding size

L100*W100mm

L100*W100mm

Material thickness

157gsm ~5mm

157gsm ~5mm

Width of tape size

4~38mm (or 10~60mm)

4~38mm (or 10~60mm)

Taping heads

2~4 sets

2~4 sets

Working speed

50~80mm/min

50~80mm

Taping accuracy

+/- 1mm

+/- 1mm

Voltage supply

220V

220V

Total power

2KW

2KW

Machine weight

700KG

800KG

Machine dimension

4270*1040*1650mm

4270*1340*1650mm


Double Sided Tape Applicator

Double sided tape size

4-38mm or( 10-60mm

Tape roll diameter

≤400mm

Tape roll inner diameter

76mm

Speed

80m/min

Min spacing between two segments

30mm

Taping accuracy

±1mm

Weight

7kg

Dimension

760*240*60mm

Power/Voltage

24V/20W

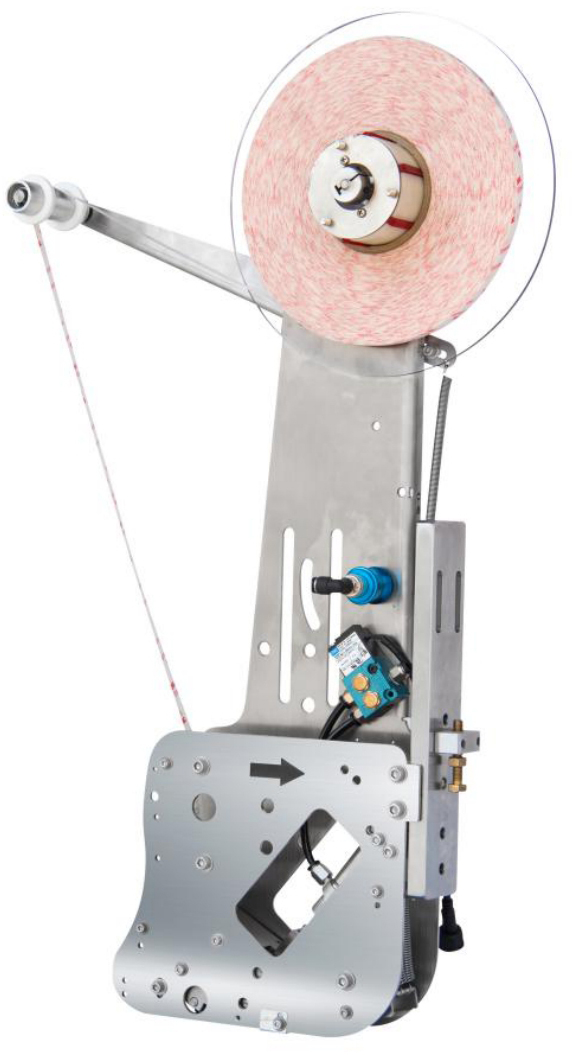

Tearing Tape Applicator

Tear tape size

3mm-5mm

Tape roll diameter

200mm

Tape roll inner diameter

30mm

Speed

80m/min

Min spacing between two segments

30mm

Taping accuracy

±1mm

Weight

6kg

Dimension

600*250*260mm

Power/Voltage

24V/20W
