Automatic Carton Box Partition Assembly Machine
|
Model |
YQ-600 |
|
Machine total power |
7KW |
|
Machine dimension |
7000x2000x2500mm |
|
Machine weight weight |
2800kg |
|
Power Supply |
380V/50Hz |
3 Phase |
|
Power |
10kw |
|
|
Partition Form |
6×(1~N)；(N≤40)-Single 3×(1~N)；(N≤40)-Double |
Single/Double Output |
|

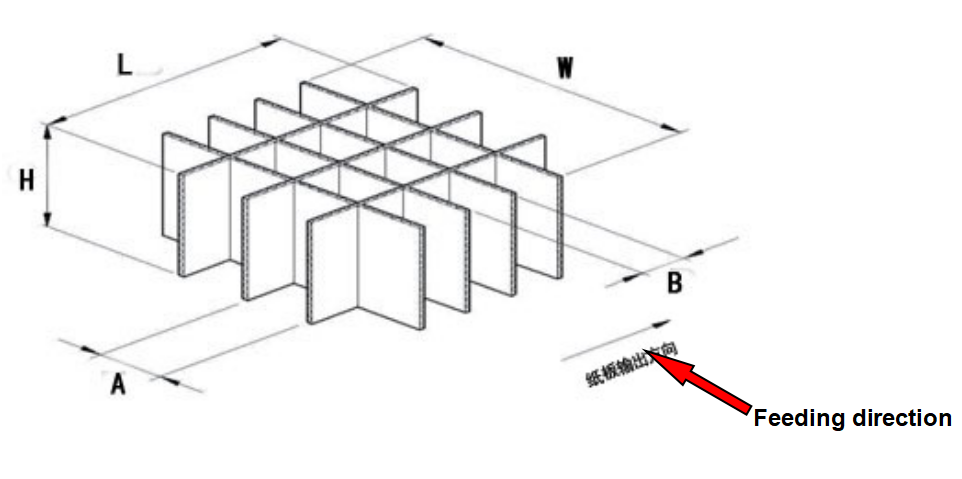

Partition Size(mm) |
L＝40～900mm |
Thickness Of Sheet 1.5～8mm
|
|
H＝60～300mm |
||
|
W＝200～600mm |
||
|
Interval A=10~580mm |
||
|
Interval B=40~900mm |
||
|
Double Output |
30-60 Sets/Min |
Partition Efficiency Apply To Cardboard Size And Partition Form |
