Product

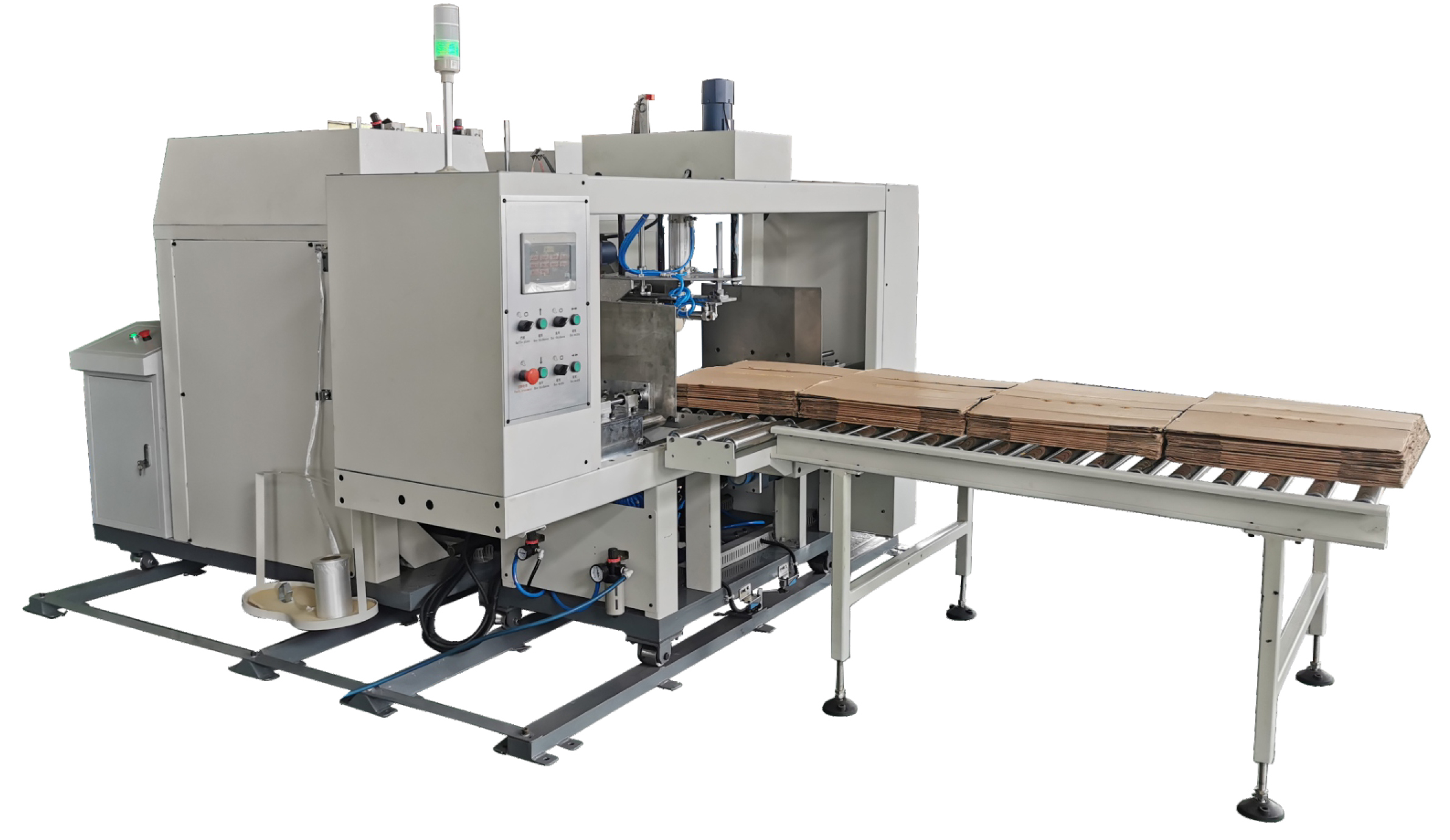

Corrugated Carton Box PE Tying Machine
Automatic corrugated carton box PE tying machine is designed for binding cardboard, corrugated box and corrugated cartons. PLC touch screen, easy operation and setting parameters. The corrugated box bundle size can be adjusted. The tying size setting is from touch screen with automatic or button adjusted.
|
Model |
FJ-1300B |
|
|

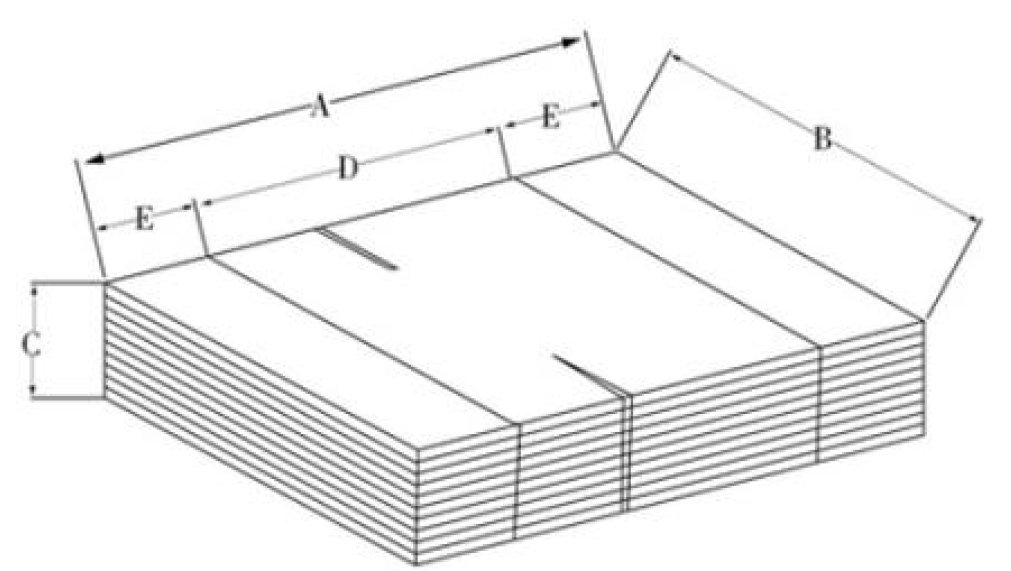

Size A |
380-1400mm |
|
|
Size B |
260-1300mm |
|
|
Size C |
75-270mm |
|
|
Size D |
230-780mm |
|
|
Size E |
50-260mm |
|
|
Tying speed |
15±2bundles/minute |
|
|
Features |
Automatic size adjustment, automatic lubrication |
|
|
Tape material |
PE（28#） |
|
|
Machine dimension |
3200（L）x2500（W）x1900（H）mm |
|
|
Air working pressure |
0.6Mpa |
|
|
Voltage supply |
380V, 3phase |
|
|
Total power |
3.5KW |
|
